Generator Protection
-
The unique generator-transformer unit protection provides the complete main and backup protection of generator-transformer units which comprises generator, main transformer, auxiliary transformer and exciter or excitation transformer. It supports both conventional and Electronic CTs/VTs, It has been widely used in high capacity steam-turbine, gas-turbine and nuclear power generator with different connection modes. Two sets of generator-transformer units support the redundant configuration for vital generator-transformer protection.
-

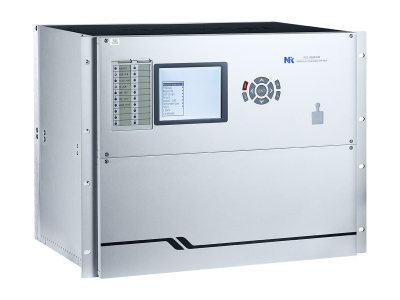

PCS-985B/AW Generator-Transformer Unit Relay
PCS-985 generator-transformer unit protection can be applied for turbo-dynamo, gas-turbine, hydro, pumped storage and nuclear power generator with different connection modes. It supports conventional CT/VT and ECT/EVT, and provides interfaces for power plant automation.For medium to large generator, two sets of PCS-985 protections can be used to achieve duplicated protection configuration. Two PCS-985 protections use different CT groups, and main and backup protection in one PCS-985 share one group of CTs.PCS-985B provides complete protection scheme for a turbo…
More Info -
PCS-985GI Generator Relay
PCS-985GI is a high performance numerical generator protection device, which integrates main and backup protection into one device. It provides complete protection of a generator in power plant, and it also provides basic protection of a generator and an excitation transformer. PCS-985GI can be applied for turbo-dynamo generator, gas-turbine generator, hydro generator and nuclear power generator with different connection modes.PCS-985GI provides up to 56 analog input channels including current and voltage inputs. The generator protections are configurable. Ancillary functions…
More Info -
PCS-985GE Generator Relay
PCS-985GE is a kind of high performance numerical generator protection device, which integrates main and backup protection into one device. It provides complete protection of a generator in power plant, and it also provides basic protection of a generator and an excitation transformer. PCS-985GE can be applied for turbo-dynamo generator, gas-turbine generator, hydro generator, pumped storage generator and nuclear power generator with different connection modes.PCS-985GE provides up to 28 analog input channels including current and voltage inputs. The generator protections are …
More Info -
PCS-985TI Transformer Relay
PCS-985TI is a high performance numerical transformer protection device, which integrates main and backup protection into one device. It provides complete protection of a transformer in any voltage level, and is typically applied for startup/standby transformer or auxiliary transformer of power plant with multiple branches, and main transformer, etc. It also provides basic protection of a two-winding main transformer and one or two auxiliary transformer.PCS-985TI provides up to 80 analog input channels including current and voltage inputs. The transformer protections are configura…
More Info -
PCS-985TE Transformer Relay
PCS-985TE is a kind of high performance numerical transformer protection device, which integrates main and backup protection into one device. It provides complete protection of a transformer in any voltage level, and is typically applied for startup/standby transformer or auxiliary transformer of power plant with multiple branches, and main transformer, etc.PCS-985TE provides up to 36 analog input channels including current and voltage inputs. The transformer protections are configurable. Ancillary functions of fault diagnostic, disturbance records, event records and communication…
More Info -

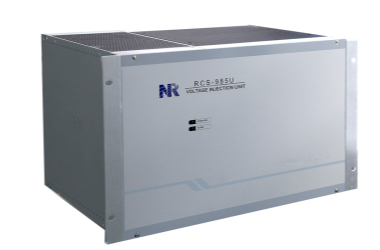

PCS-985U Voltage Injector
The stator earth fault protection with external voltage injector can detect 100% earth faults in the stator windings of generator which is connected with the network via a unit transformer. The auxiliary power supply device PCS-985U can inject low-frequency external power source to the generator stator winding side, PCS-985U coordinate with PCS-985, then one set of integral generator stator ground fault protection with 20Hz voltage injection is formed.The hardware of the PCS-985U is constituted by low-frequency power source, low-frequency filter, converter, voltage-divide re…
More Info -
PCS-985RE Rotor Earth-Fault Relay
The PCS-985RE is mainly designed for rotor earth fault by external voltage injection. Because of adopting self-adaptive active switching technology, The PCS-985RE can still supervise rotor insulation even if no excitation voltage is applied. It has high sensitivity and the same sensitivity to any one-point earth fault within the rotor winding. The automatic and manual control function to electric brush ensure rotor earth fault protection can be applied to the brushless exciter units.
More Info -

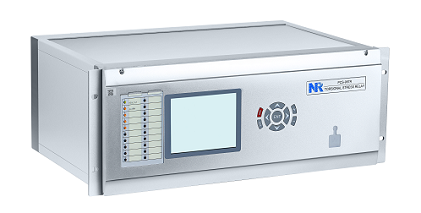

PCS-987R Torsional Stress Relay
Sub-synchronous oscillations (SSO) can occur when the turbinegenerators are connected to the power grid with some electrical cases include: transmission line series capacitors, HVDC converters, large-scale wind power generation, etc. Under the action of SSO, the shaft system of turbine-generator will be in a state of torsional vibration, resulting in fatigue loss. In some severe cases, it may lead to the shaft cracks, bolt cut or coupling twist.PCS-987R is a digital protective relay of torsional stress relay (TSR) which provides monitoring and protection of the torsional vi…
