Configuration Tool
-
NR software kit offers a visual interface for device updates and commissioning.
-
PCS-Torch MOT Tool
PCS-Torch MOT Tool is a software tool designed for MOT (Model Option Table) selection functions of PCS-S series devices. Selected configuration information, including the MOT code and the device hardware configuration, as well as the rear view of the device based on selected information can be displayed. Both the MOT information and the device hardware configuration can be exported as an Excel file, and the exported Excel file can also be imported into PCS-Torch MOT Tool. Moreover, MOT code can be imported into PCS-Torch to generate MOT configurat…
More Info -

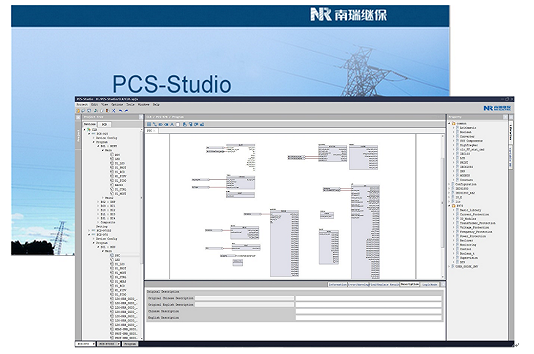

PCS-Studio Configuration Tool
PCS-Studio is a software tool designed for configuration & debugging of PCS-S series devices. It configures the inputs, outputs and parameters of PCS-S series devices in visual and graphic display to facilitate project configuration. Modularization design is adopted to achieve high accuracy, better flexibility and interactive capability.
More Info -

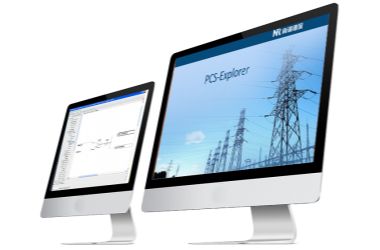

PCS-Explorer IED Configuration & Debugging Tool
The PCS-Explorer is a software tool designed for IED configuration & debugging in commissioning stage of PCS series devices. It configures the inputs, outputs and parameters of PCS series devices in visual and graphic display to facilitate project configuration.
More Info -
PCS-SCD Configuration Tool
PCS-SCD Configuration Tool is developed for the engineering implementation of IEC61850. It is the visual configuration tool used to set SCL files, including creating, editing and viewing SCL files that conform to IEC61850-6 regulations. Users can construct the substation configuration, structures and models via this tool, and quickly design and manage substation settings.
More Info -
PCS-COMM Configuration & Debugging Tool
The PCS series communication device is the new generation of communication device produced by NR Electric on the research of integrated automation system and site operation experience over years. The PCS-COMM configuration and debugging tool works as the associated auxiliary software. It is designed and developed on the basis of object-oriented technology, network-based database technology, cross-platform visual technology and the latest industrial standards, which can fully support IEC60870-5-103, IEC61850 and other international standards and to meet the configuration a…
More Info
